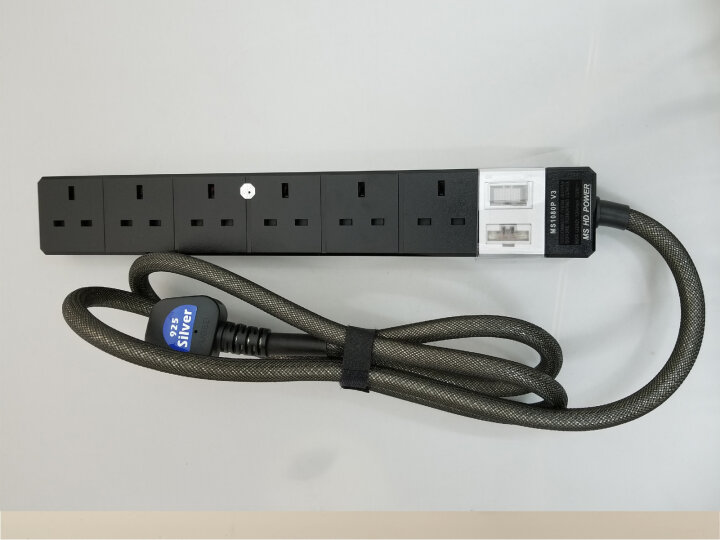

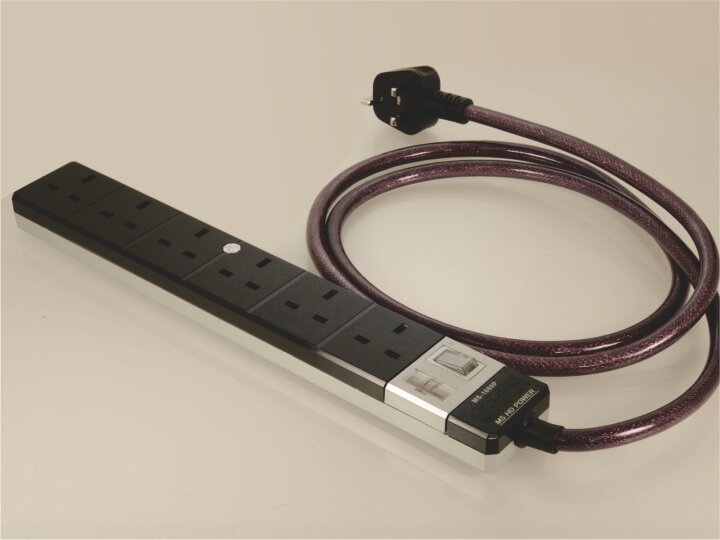

MS HD Power MS-1080P V3 6 ways Distribution Block

A 6 ways switched distribution block that offers quality specifications at a sensible price. The design, build and component specifications that are offered in far higher priced multi-way distribution blocks for audio and A/V use.

Each part of this distribution block has been designed for audio and A/V use.

The 2m long integral mains cable is made from 3 Core 6N OFC wire and double screened. The mains plug has silver plated power pins and silver plated 13A fuse. The internal power 'buss-bars' are an impressive 5mm sq. for instant power transmission, the high spring rate phosphor bronze socket clips pass the BS Standard 30,000 times plug IN / OUT test and the high spring rate phosphor bronze fuse clips are silver plated.

This distribution block also comes with a high quality noise filtration network, effective EMI and RFI suppression, and anti-surge protection - to ensure your equipment is safe from mains spikes, and your audio sound quality is not impaired by noisy mains.

Specifications:

• Number of outlets: 6
• Enhanced Noise Filtration Network using Selected Components (V3 improvement)
• Conforms to BS1363
• Mains lead: 2m. Conforms to VDE standards, 3 Cores 6N OFC copper wire. Double screened against RF interference.
• UK plug on lead - conform to BS1363; fused and un-switched, silver plated pins.
• Fuse: 13A BS-1362 Silver plated Fuse fitted in plug
• 13A BS-1362 Silver plated Fuse fitted at distribution strip
• Mains on/off Switch: Fitted on distribution strip
• Mains Voltage: 200 - 240 VAC / 50~60Hz
• Max. Current: 13 Amp.
• Max. Wattage: 3,000 Watt (230V)
• Dimensions: 60mm x 402mm x 30mm (W x L x H)
• Net Weight: 0.8 KG (net)
